Import a Certificate into the Orchestrator Trust Store Using a PEM File

1 Mar 2022Updated 1 Nov 20262 min read362 views

Workflows failing with a certificate error? Grab the remote server’s certificate as a PEM file with openssl, then import it into the Orchestrator trust store with the SSL Trust Manager Library workflow, or Control Center on older 8.x.

Mayank Goyal

In this article

To communicate securely with other servers (vCenter Server, databases, LDAP, Single Sign-On and others), Orchestrator must be able to verify their identity. For that, you may need to import the remote server’s SSL certificate into the Orchestrator trust store. Without it, workflows that talk to that server fail with a certificate error like this one:

Workflow failing with an SSL certificate trust error

Tested on: VCF Operations Orchestrator 9.1.1 (checked Nov 2026: the Library workflow is still available) and vRealize Orchestrator 8.x (original steps, 2022).

Two ways to trust a certificate

You can import a certificate into the trust store either by connecting to a specific URL, or directly from a PEM-encoded file.

Option	Description
Import from URL or proxy URL	The URL of the remote server: https://your_server_IP_address or your_server_IP_address:port
*Import from file*	Path to the PEM-encoded certificate file.

In this post, we’ll focus on importing a certificate from a PEM-encoded file. For URL-based import, simply use the Library workflows.

Step 1: Generate the PEM file

Prerequisites

Find the fully qualified domain name of the server you want Orchestrator to connect to over SSL.

Procedure

Log in to the Orchestrator appliance over SSH as root.
Run this command to retrieve the remote server’s certificate:

openssl s_client -connect host_or_dns_name:secure_port

If you use a non-encrypted port, add -starttls and the required protocol:

openssl s_client -connect host_or_dns_name:port -starttls smtp

Copy the text from the -----BEGIN CERTIFICATE----- tag to the -----END CERTIFICATE----- tag into a text editor, and save it as a file on your local system.

Step 2: Import the PEM file

You can import the file using a Library workflow or, on older versions, Control Center.

Option A: Library workflow (all versions)

Log in to the Orchestrator client.
Go to Workflows under Library > Configuration > SSL Trust Manager.
Run the workflow Import a trusted certificate from a file.

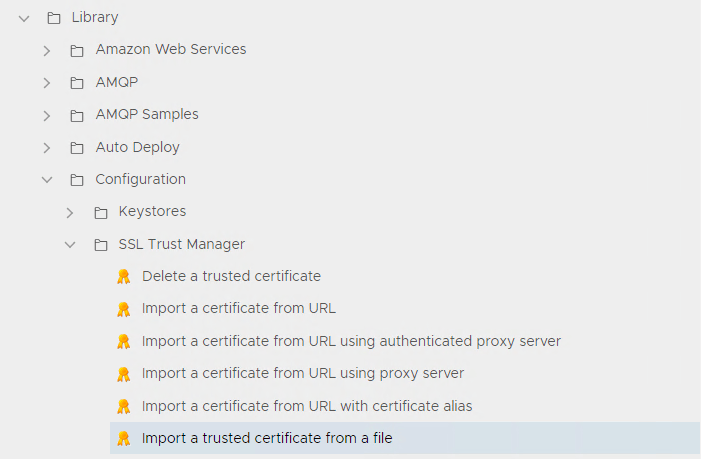

Import a trusted certificate from a file workflow in the SSL Trust Manager folder

Browse to the certificate file and click Run.

Workflow input form with the PEM certificate file selected

The workflow should complete successfully.

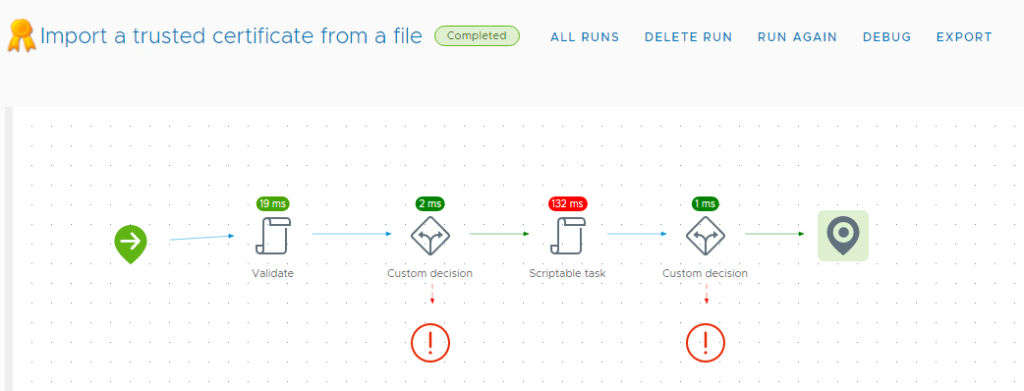

Certificate import workflow completed successfully

Option B: Control Center (8.18 and earlier)

Log in to Control Center as root.
Go to the Certificates page.

Certificates page in Orchestrator Control Center

On the Trusted Certificates tab, click Import and select the Import from a PEM-encoded file option.

Import from a PEM-encoded file option on the Trusted Certificates tab

Browse to the certificate file and click Import.

Importing the PEM certificate file in Control Center

Result

You’ve imported the remote server’s certificate into the Orchestrator trust store. Run the workflow that talks to that server again, and the certificate error is gone.

Things to watch out for

No Control Center from 8.18.1 onwards. Control Center was removed starting with Orchestrator 8.18.1, and VCF Operations Orchestrator 9.x doesn’t have it either, so use the Library workflow (Option A) there.
Certificates get renewed. When the remote server’s certificate changes, import the new one, or the same error comes back.

Wrapping up

Two steps: grab the certificate as a PEM file, then import it with the Library workflow. If you run into a different certificate error, feel free to share it in the comments. See you in the next post.
