Important folder locations in Orchestrator Appliance [LIVE LIST]

Since version 8.x, Orchestrator appliance files moved around and older docs still point to 7.x paths. A growing list of useful locations: scripts, jars, Control Center config, plugin .dar files, scripting logs and vracli Python modules.

In this article

I have noticed while working with VMware Support that the location of the files and folders are all messed up since the release of version 8.x, mainly because of a revised architecture. Some documents still points to version 7.x and creates a lot of confusion while we troubleshoot. Hence, I am preparing this list of important locations which generally helps during troubleshooting which I will try to update as per my findings. You can bookmark this as well.

/opt/scripts

You will most the scripts that allows to perform operations on the appliance.

/data/vco/usr/lib/vco/app-server/bin

You will find all the jars here.

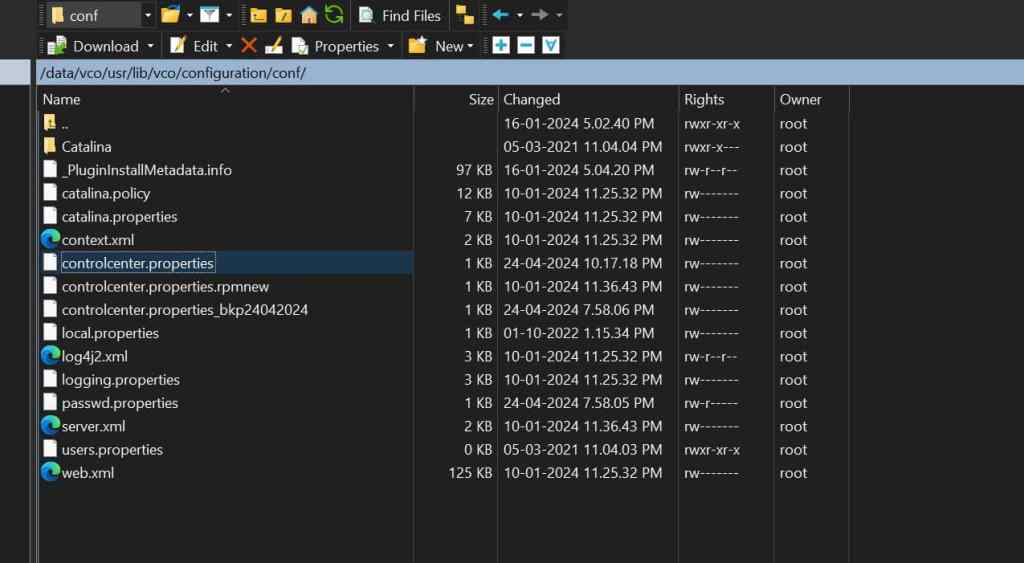

/data/vco/usr/lib/vco/configuration/conf

Control Center properties

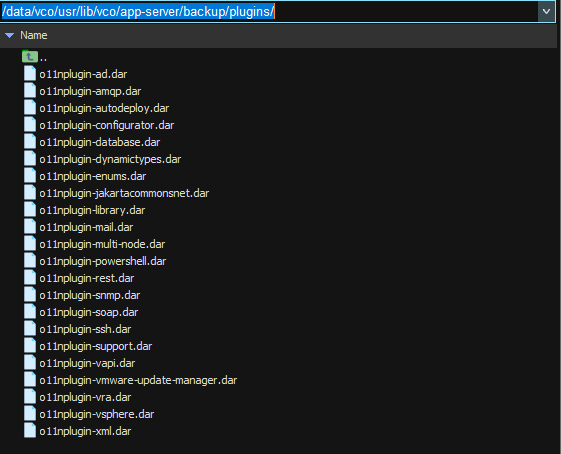

/data/vco/usr/lib/vco/app-server/backup/plugins/

All Plugin .dar files

/data/vco/usr/lib/vco/app-server/logs/

Scripting logs

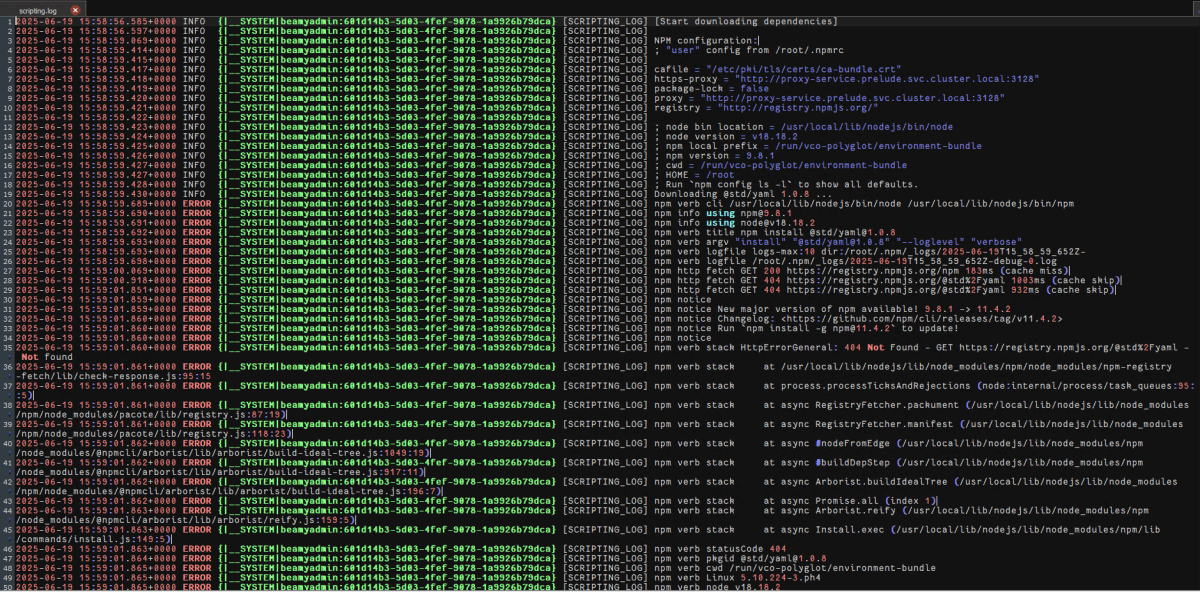

Command line terminal output showing logging information, including errors and informational messages related to script execution and dependencies.

/opt/python-modules/vracli/

All vracli commands as Python files

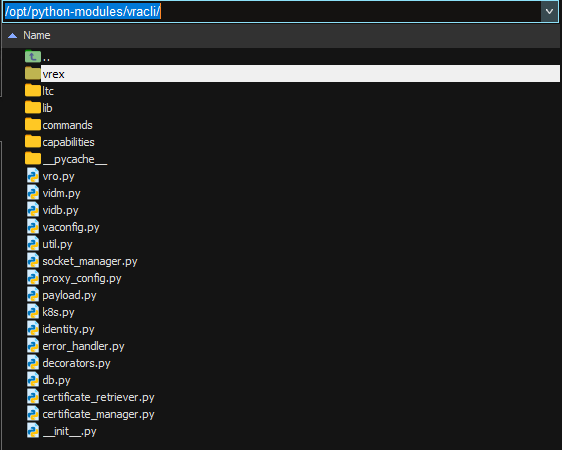

/opt/python-modules/vracli directory listing with Python files related to vracli commands
